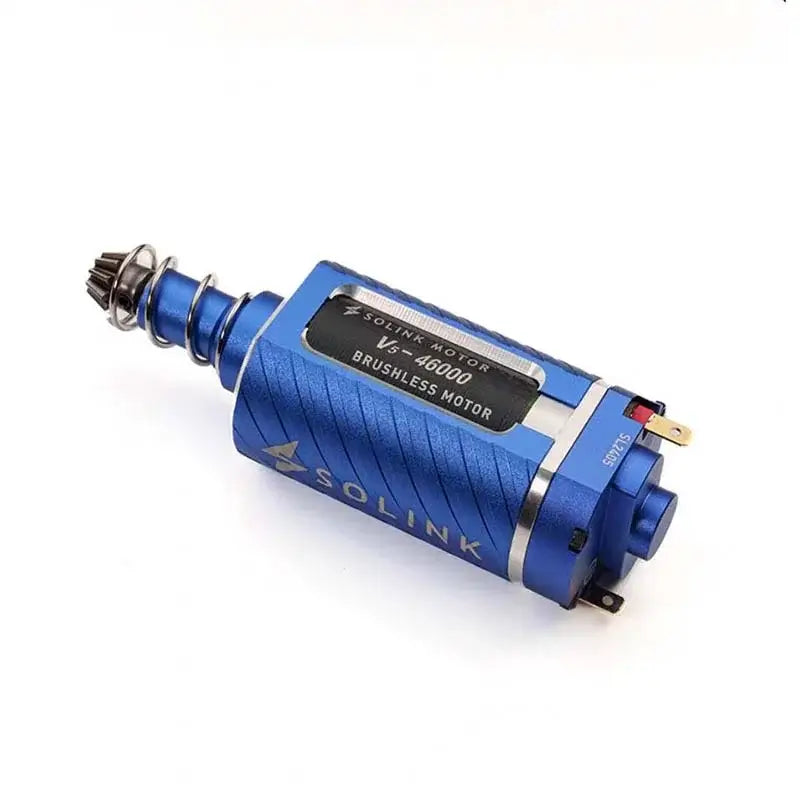

Solink V5 Unidirectional Programmable Brushless 480 Bearing Motor

The Solink V5 Unidirectional Programmable Brushless 480 Bearing Motor features an innovative unidirectional bearing that eliminates the need for an anti-reversal latch, resulting in reduced noise and more precise motor response. Its integrated shaft sleeve and CNC-machined motor housing enhance concentricity, minimizing errors for improved reliability. This motor delivers a major performance upgrade in torque, efficiency, startup speed, brake response, and temperature control, surpassing previous generation standards for professional-grade operation. Ideal for applications requiring high precision and advanced motor control.

Major Performance Evolution

Torque, efficiency, startup speed, brake response, temperature control... and other performance aspects have been comprehensively upgraded! The following data was obtained under the same conditions using professional testing equipment, with the Suiling 4th generation motor at the same RPM used as the reference. Data is for reference only.

• Startup speed increased by 100%

• Efficiency enhanced by 5%

• Maximum temperature under the same load reduced by 8%

• Braking performance enhanced by 100%

• Torque increased by 8%

• Heat generation rate under the same load reduced by 7%

• Power saving under the same load: 6%

Specifications:

Brand: solink.
Color: blue.
Material: cnc alloy metal.
Type: 480 short/long axis brushless.
Performance: 11.1v 46000rpm.
Adjustment range: 10K-46K RPM.
Compatibility:  v2 gearbox.
Package includes: 1* solink v5 programmable unidirectional 480 brushless bearing motor.

Setting Parameter 1: Maximum Equivalent RPM

Sets the motor's equivalent RPM to a value less than or equal to its own rated RPM specification.
Recommended/Default value: The maximum RPM the motor can achieve at 11.1V, usually marked on the motor housing.

Setting Parameter 2: Starting Torque

Adjusts the motor's starting power to handle higher loads or reduce startup shock.
Recommended/Default value: 60%

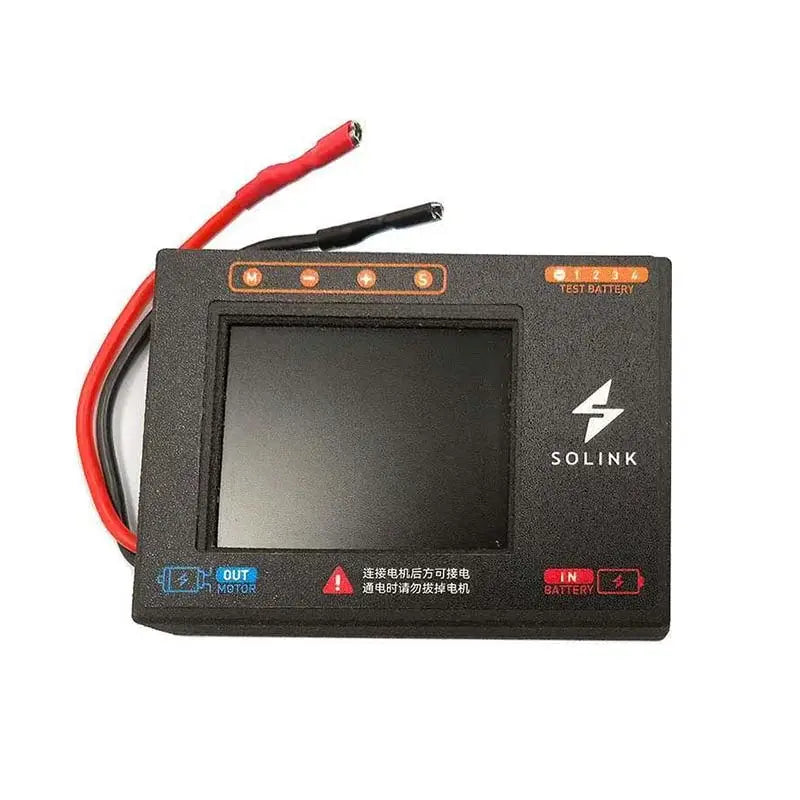

Program Card Button Instructions

• M Button: Short press to select the item to adjust. Long press to quickly reconnect when the motor is disconnected.

• - Button: Short press to decrease the value of the selected item. Long press to decrease rapidly.

• + Button: Short press to increase the value of the selected item. Long press to increase rapidly.

• S Button: Long press to save settings to the motor.

⚠️ Safety Precautions

1. Malfunctions, poor connections, or accidental situations may cause unexpected motor rotation. Ensure the motor is securely fixed before using this product.

2. Always ensure the motor is reliably connected to the program card via the cable before powering the card on, otherwise it may cause unexpected motor rotation.

3. The battery voltage supplying the program card must be higher than 7.4V, otherwise it may cause unexpected motor rotation.

4. After settings are saved, the program card will automatically lock and disconnect from the motor. To perform settings again, power cycle the card or long press the M button to reconnect.

5. Do not disconnect the motor cable while in the setting interface, as this may cause unexpected motor rotation.

6. In case of any unexpected situation, immediately cut off the power to the program card.
