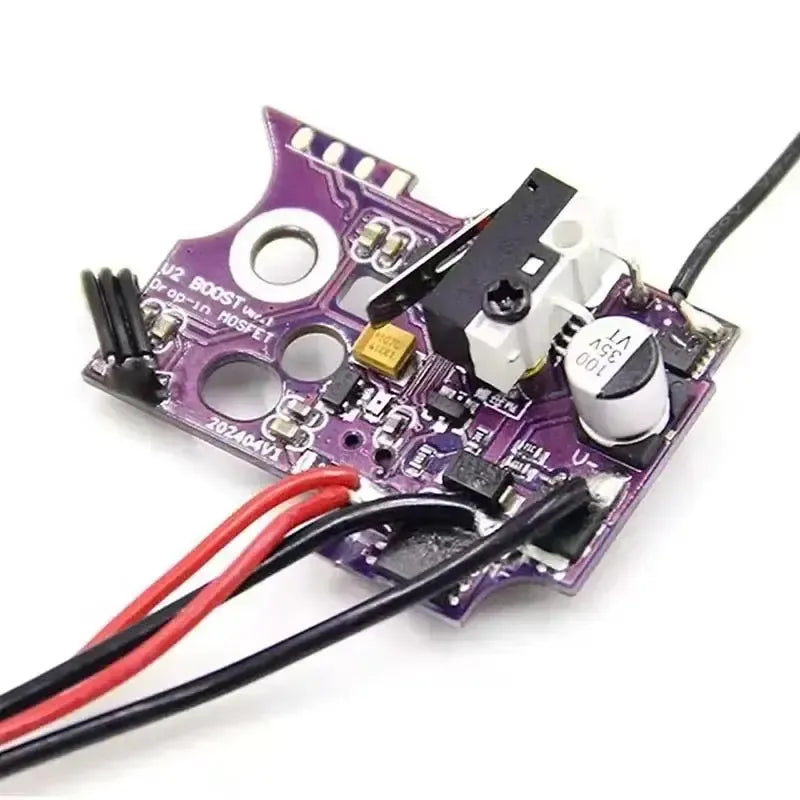

Ahtech Infinity V2 Boost Drop-In Mosfet for V2 Gearbox

Ahtech Infinity V2 Boost Drop-In Mosfet for V2 Gearbox

Regular price $45.99 USD
Regular price Sale price $45.99 USD
Sale Sold out
Taxes included. Shipping calculated at checkout.
Type
Wiring type

Take your V2 gearbox gel blaster to the next level with the Ahtech Infinity V2 Boost, a high-performance drop-in programmable MOSFET module engineered for speed, safety, and versatility. Designed for Version 2 gearboxes of gel blasters, this unit features a compact form factor with powerful internals—ideal for serious players demanding maximum trigger response and reliability.

Key Features:

  • 🔧 Plug & Play Firepower: Designed for easy integration into standard V2 gearboxes (some models may require minor shell modifications).
  • Dual DirectFET Design: Supports up to 300A burst and 160A braking current, delivering unmatched motor control and performance stability.
  • 🔋 Smart Battery Detection & Protection: Automatically detects cell count and activates low-voltage protection at 3.2V per cell—ensuring longer battery life and safer operation.
  • 🔥 FET Overheat & Gearbox Lock Protection: Built-in fail-safes stop the system and alert you when temperatures run high or a mechanical jam is detected.
  • 🧠 Fully Programmable Shooting Modes: SAFE / SEMI / AUTO, with customization for single shot, double-stroke semi, and 3–9 round burst fire options.
  • 🛑 Active Braking System: Ensures precise piston stop position, resolving the issue of unintentional multi-shot in semi-auto mode and reducing stress on gearbox internals.
  • 🎯 Adjustable RoF & Pre-Cocking: Fine-tune trigger response and firing rate with adjustable sector gear stop position and trigger pull delay—ideal for competitive setups.
  • 🧲 Magnetic Sensor System: High-tolerance gear detection—no need for white-painted gears, impervious to oil or gearbox shell tolerances.
  • 🔌 Pressure Magazine Compatible: Automatically powers the mag motor on connection for a 0.5s pre-feed cycle.
  • 🧰 Highly Durable: Built to support up to M150 springs, brushless motors, and high-discharge batteries.
  • 🛡 Compact Size: Just 45 x 30 x 14mm—compact enough for most builds.

Tech Specs:

  • Voltage Range: 7.4V–12.6V
  • Dual FET Output
  • Max Start Current: 300A
  • Max Brake Current: 160A
  • Fire Modes: SAFE / SEMI (Single, Dual-Stroke, Burst 3–6) / AUTO (Full Auto, Burst 3–9)
  • Operating Current (Idle): ≤0.01A

Installation Notice:

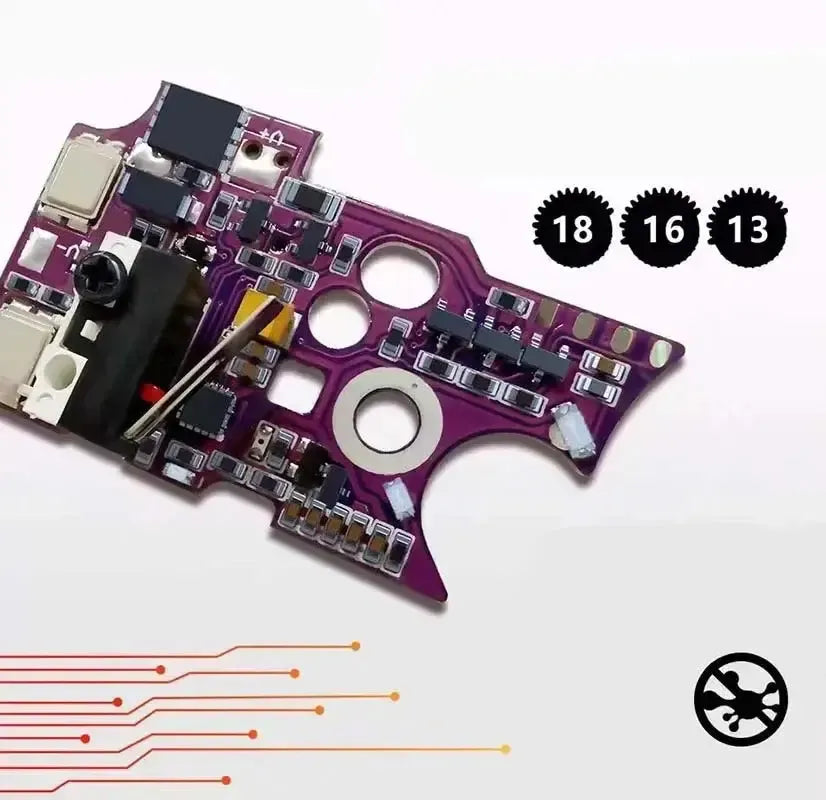

This unit requires soldering and wiring. Users should have intermediate to advanced technical skills or consult a technician. Be sure to insulate all connections and avoid reverse polarity. Only use high-torque motors and proper gear ratios (recommended 13:1 or 16:1). Includes full magnetic sensor calibration instructions.

Specifications:

Brand: ahtech infinity.
Material: electronic components.

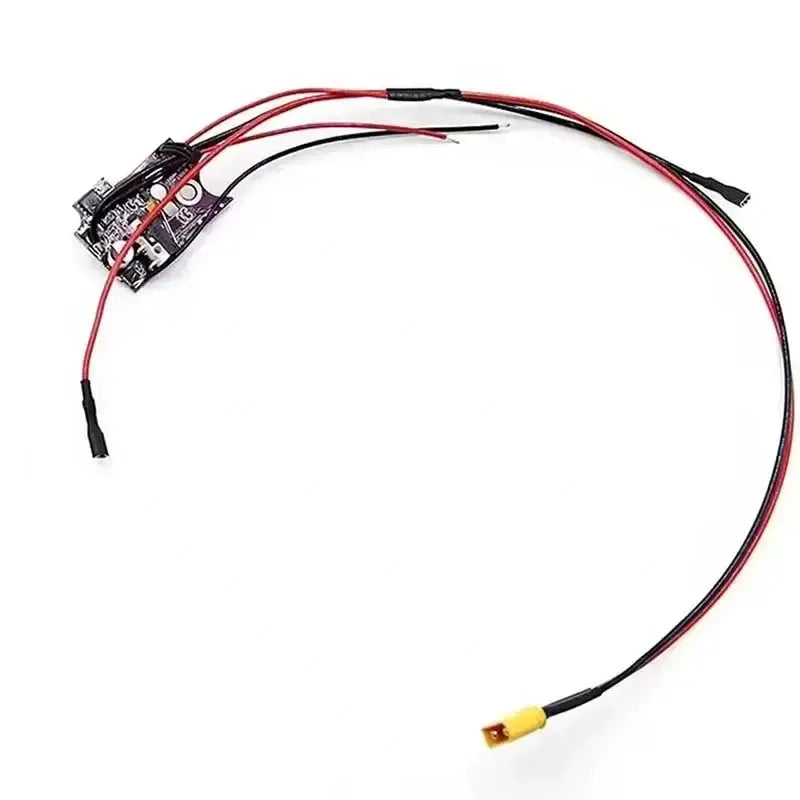

Wiring: rear or front.
Plug type: xt30.
Sensor type: magnetic / mechanical / optic.
Compatibility: standard V2-style gel blaster gearboxes.
Package includes: 1x ahtech infinity v2 boost drop-in mosfet.

Programming Instructions

  1. Turn off power, switch fire selector to AUTO.

  2. Connect the battery, then hold the trigger for 3 seconds until you hear a long “beep~” sound, then release. The system will now enter programming mode. (If not, switch back to AUTO mode.)

  3. Once in programming mode, the motor will emit short “beep” sounds. The number of beeps indicates the option index. To select a desired option, pull and hold the trigger within 2 seconds after the beeping stops, until you hear a long “beep~” sound. The module will enter the corresponding option.

  4. Inside the selected option, the motor will again emit short “beep” sounds. The number of beeps indicates the value for that setting. To select it, pull and hold the trigger within 2 seconds after beeping stops, until you hear two long “beep~ beep~” sounds. The system will then exit programming mode automatically.

Option\Parameter 1 2 3 4 5 6
1 SEMI Mode Single shot Double-action single shot 2-round burst 3-round burst 4-round burst 5-round burst
2 AUTO Mode Full auto Single shot 3-round burst 4-round burst 5-round burst 6-round burst

| 3 Rack Position | Frontmost position | Higher gears move the rack further back, up to 15 gears. Rack preload should be adjusted starting from gear 2, incrementally increased until single-shot stability is achieved while keeping the rack as far back as possible. If double firing occurs, reduce the gear until single-shot stability is restored. |

4 Single-shot Trigger Interval No interval 0.3 sec 0.6 sec 0.9 sec 1.2 sec 1.5 sec
5 Full-auto Rate of Fire 100% 80% 70% 60% 50%



Sound Indicators: "Beep!" represents a short beep.

"Beep~" represents a long beep.

Type
Beep! Beep! Beep! Startup sound, indicates the fire control system has initialized normally.
Beep! Beep! Beep! Beep! Low voltage warning. Power off immediately and replace the battery.
Beep~ Beep! Beep! Beep! 1. System entered quick test mode.
2. Trigger switch is short-circuited or damaged.
Beep~ Jam warning. The fire control system will wait 2 seconds before responding to trigger operations. The magnetic sensor detects no gear movement:
1. Magnet is missing.
2. Magnetic sensor is misaligned or damaged.
3. Gear is jammed, motor is blocked, or motor polarity is reversed.
4. Poor motor contact or tripped circuit.
Beep! Overheat warning. The fire control system will wait 5 seconds before responding to trigger operations. Magazine connection sound.
Beep! Beep! Feedback sound for sensors or switches in quick test mode.
