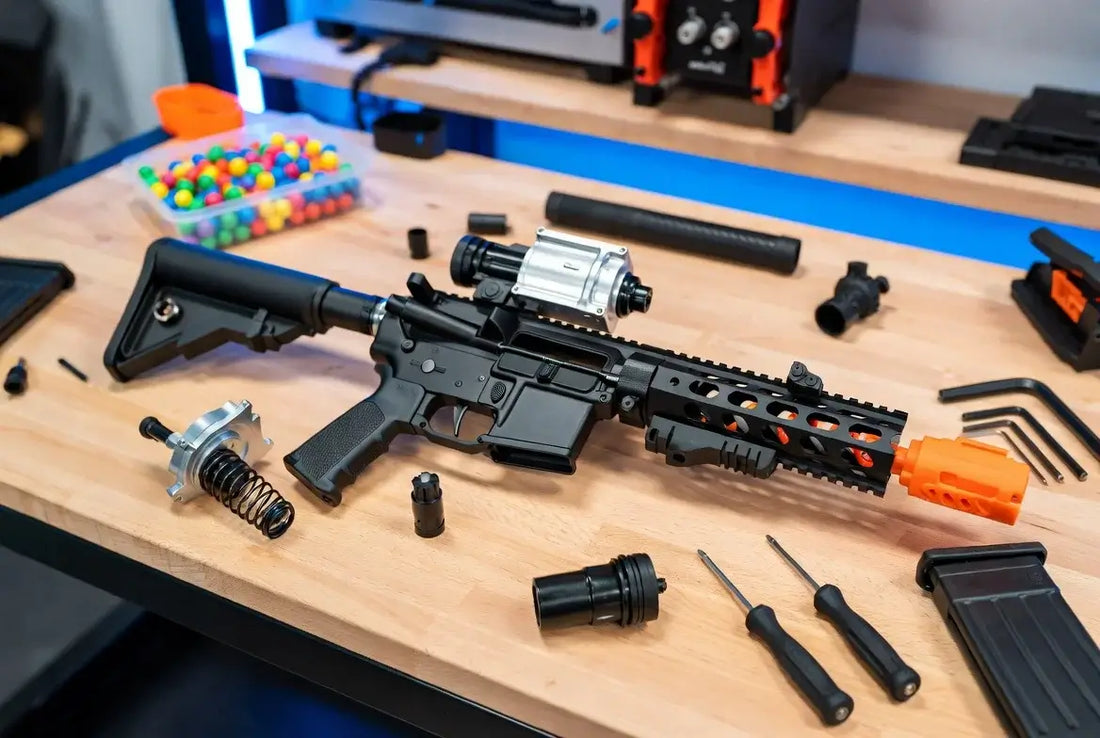

How to Build a Gel Blaster Rifle from Scratch?
shockmanBuilding a gel blaster rifle from scratch is one of the most rewarding projects for serious enthusiasts. It gives you complete control over performance, ergonomics, and aesthetics while teaching you exactly how these machines work.
This is an intermediate-to-advanced DIY project. It is not recommended for complete beginners. Many players start by upgrading quality base models (like popular M4/HK416-style blasters) before attempting a full custom build. If you're ready to go deeper, here's a practical, no-fluff guide.
⚠️ Critical Safety & Legal Disclaimer Gel blasters are imitation firearms. Always:
- Wear proper eye protection (mandatory).
- Never point at people, animals, or property you don’t intend to “gel”.
- Use only on private property with permission and in safe, designated areas.
- Check all local, state, and national laws before building, owning, or using one. In places like California and other regions, they are regulated as imitation firearms — orange tips, public display restrictions, and other rules often apply.
- Modifications can affect legality and safety. Proceed at your own risk.
Why Build from Scratch Instead of Upgrading?
- Full customization of FPS, rate of fire, trigger response, and weight.
- Learn gearbox mechanics deeply (the most common failure point in cheap blasters).
- Create a truly unique rifle tailored to your playstyle.
- Long-term cost savings and better reliability when using quality parts.
Pro tip: Many builders start with a solid base receiver or gearbox and source aftermarket internals rather than machining everything from raw stock.
Essential Parts Checklist
Here’s what you’ll typically need for a V2 gearbox M4/M416-style rifle build:
Gearbox Internals (V2 platform recommended for rifles):
- V2 gearbox shell
- 18:1 or performance metal gears
- Reinforced piston (metal teeth or full metal)
- Main spring (M90–M120 range — match to your target FPS and barrel length)
- High-torque motor
- Bearings, shims, spring guide, cylinder, piston head, nozzle, tappet plate
Power System:
- 11.1V LiPo battery (high discharge)
- MOSFET (highly recommended)
- Proper wiring and connectors
Barrel & Accuracy:
- 6.03mm or tightbore precision inner barrel
- Quality hop-up unit + bucking (gels are more delicate than BBs)
Receiver & Externals:
- M4/AR15 compatible upper & lower receiver
- Outer barrel, handguard, stock, grip, magazine
Shop quality upgrade parts and gearboxes here: Gel Blaster Parts & Upgrades
Step-by-Step Build Overview
1. Plan Your Specs First
Decide your goals:
- Target FPS (280–350 is common and gel-friendly for backyard use)
- Rate of fire vs torque balance
- Barrel length (affects cylinder volume and FPS)
Choose a V2 gearbox platform for standard rifle builds — it’s widely supported with upgrade parts.
2. Assemble the Gearbox (Most Important Step)
This is where most builds succeed or fail.
- Install bearings into the shell.
- Shim gears correctly for smooth, quiet mesh (critical — poor shimming destroys gears).
- Install piston, spring guide, and main spring.
- Add cylinder head, nozzle, and tappet plate.
- Mount the motor and test the cycle by hand before full power.
- Use proper gearbox grease (not too much).
Quality metal gears, pistons, and springs make a massive difference in durability and consistency.
3. Install Gearbox into Receiver & Wire It
- Drop the completed gearbox into the lower receiver.
- Install the motor and wire everything (add a MOSFET for better performance and protection).
- Ensure clean routing and secure connections.
4. Barrel, Hop-Up & Outer Assembly
- Install the precision inner barrel and hop-up unit.
- Set hop-up carefully — too much and gel balls will burst or fly erratically.
- Attach outer barrel, handguard, stock, and grip.
- Test magazine feeding and basic function.
5. Power Up, Test & Tune
- Use a quality LiPo and charger.
- Function test dry first.
- Chronograph your FPS (adjust spring if needed).
- Fine-tune hop-up for best range and accuracy.
- Perform an air seal check — good compression is everything.
For an excellent written companion to the video above, check out this detailed custom build guide: How to Build the Perfect Custom Gel Blaster: A Step-by-Step Guide
Pro Tips for Better Results
- Air seal wins — focus on compression for consistent FPS.
- Start conservative with spring strength. Gels break more easily than BBs at very high FPS.
- Take your time shimming. It’s the #1 cause of stripped gears.
- Document your build (photos/notes) — invaluable for future maintenance.
- Common rookie mistakes: Wrong grease, poor shimming, over-voluming the cylinder, and skipping the MOSFET.
How Long & How Much?
Expect 4–12+ hours depending on experience. Basic reliable custom build: $200–400+ in parts. Premium builds with high-end components cost more.
Ready to Build or Upgrade?
Quality parts are the foundation of any great custom gel blaster. Whether you’re doing a full from-scratch build or upgrading an existing rifle, using durable metal internals and well-matched components will save you frustration and give you better performance.
Building from scratch is challenging but incredibly satisfying when done right. Take it slow, prioritize safety and quality parts, and you’ll end up with a rifle that performs exactly how you want it to.
Stay safe and have fun out there!
